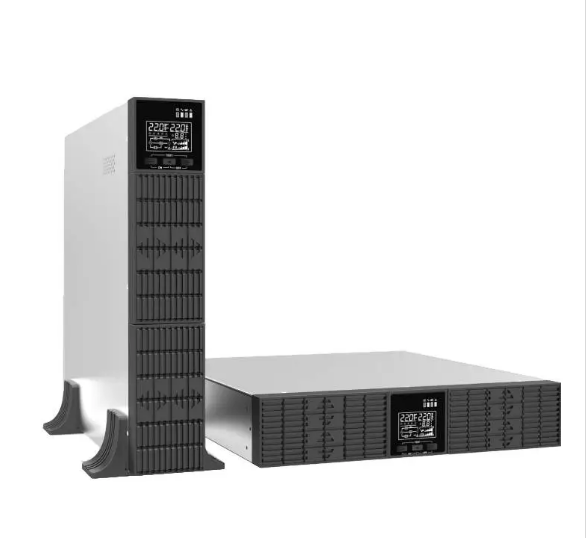

ZY RT rack-mounted online UPS power supply 1-10KW battery UPS backup

Product Overview

RT series is a new generation high frequency rack-mount online UPS in powers starting from 1-3kVA and 6-10Kva. This uninterruptible power supply adopts standard 2U rack structure, allowing to connect multiple battery packs in parallel to apply various appliances. Compact design can largely reduce the floor space.

With the advanced 3-level technology and soft switching design, this online UPS power supply largely reduce switching losses and improve the performance. The maximum efficiency of this high-frequency UPS is up to 95.5% and can reach up to 98.5% in ECO mode, greatly saving energy.


Main Features

  • Rack Mount UPS 1kva-10kva

  • Selectable digital charging current from 1-12A, easy to match different appliance

  • Optional wide input voltage range 208/220/230/240VAC

  • Super high load efficiency, output power factor up to 1.0, and input power factor up to 0.99

  • High efficiency reach 95.5%, reduce loss of UPS

  • Power efficiency reach 98.5% in ECO mode

  • Faster maintenance

Online UPS


Application Fields

RT online UPS is best uninterruptible power backups for home appliances, desktop, router, WIFI, television. Suitable to used as battery backups in home, commercial and office.


Specifications

Model #RT-1KRT-1KLRT-2KRT-2KLRT-3KRT-3KLPT-6KPT-6KLPT-10KPT-10KL
Rated Capacity1Kva/1000W2Kva/2000W3Kva/3000W6Kva/5400W10Kva/9000W
6Kva/6000W10Kva/10000W
INPUT
Input FormatL+N+PEL+N+PE
Rated input voltage208/220/230/240VAC208/220/230/240VAC
Voltage Range110-300Vac(110-176Vac,280-300Vac power limited)110-300Vac(110-176Vac,280-300Vac power limited)
Frequency Range50/60Hz±6Hz/±10Hz（Setable)50/60Hz±6Hz/±10Hz（Setable)
Input Power Factor≥0.99≥0.99
Input Harmoric Distortion≤3% THD(linear load), ≤5% THD(non-linear load) PF=0.8≤5% THD(linear load), ≤8% THD(non-linear load) PF=0.8
OUTPUT
Output FormatsL+N+PEL+N+PE
Output voltage208/220/230/240VAC208/220/230/240VAC
Output Accuracy±1%±1%
Output frequencyAC mode: same as AC, Battery mode: 50/60Hz±1%AC mode: same as AC, Battery mode: 50/60Hz±1%
Output Harmoric Distortion≤1% THD(linear load), ≤3% THD(non-linear load) PF=0.8≤2% THD(linear load), ≤5% THD(non-linear load) PF=0.8
Output Power Factor1.0 1.0
Transfer TimeAC mode to Batt. Mode: 0ms, Inverter mode to Bypass mode: 4ms0ms(w/o ECO function)
Load CapacityAC MODE:
30min@102%~110% Load
10min@110%~130% Load
30s@130%~150% Load
200ms@>150% Load		Battery Mode:
1min@102%~110% Load
10s@110%~130% Load
3s@130%~150% Load
200ms@>150% Load		AC MODE:
30min@102%~110% Load
10min@110%~130% Load
30s@130%~150% Load
500ms@>150% Load		Battery Mode:
10min@102%~110% Load
1min@110%~130% Load
10s@130%~150% Load
500ms@>150% Load
MACHINE EFFICIENCY
AC ModeFull load efficiency 94.5%@220VacFull load efficiency 95.5%@220VacFull load efficiency 95.5%@220VacMaximum efficiency 95.5%, Full load efficiency 95%
Battery ModeFull load efficiency 89.5%@36VacFull load efficiency 91.5%@72VacFull load efficiency 91.5%@96VacMaximum efficiency 95.3%, Full load efficiency 94.8%(20pcs battery)
Battery ModeFull load efficiency 89.5%@24VacFull load efficiency 91.5%@48VacFull load efficiency 91.5%@72Vac/
BATTERY
Battery Qty7Ah×2/7Ah×336V7Ah×4/7Ah×672V7Ah×6/7Ah×896VAdjustable from 16/18/20pcs, Default 16pcs(refer 4.4 for details
Battery type/Lead acid battery
Backup timeDepend on user's requirement and configuration/
Charge Mode/2/3 period charging
Charge CurrentRT1K-3K: 1.0A (default), 1-2A(adjustable) external battery backup;
RT1KL-3KL: 5.0A (default), 1-12A(adjustable)		Adjustable from 1-12A(PF=0.8,Adjustable 1-8A), Default 1A
WORKING ENVIRONMENTAL
Ambient temperature0~40℃0~40℃
Ambient Humidity20%~95%（Non-condensing）20%~95%（Non-condensing）
Storage temperature-15~60℃-15~60℃
AltitudeAltitude should not exceed 1000m, derating above 1000m, maximum 4000m, refer to IEC62040Altitude should not exceed 1000m, derating above 1000m, maximum 4000m, refer to IEC62040
DISPLAY
LCDWorking mode/load/battery power/input/output ectWorking mode/load/battery power/input/output ect
Standards and CertificationsEN-IEC 61000, EN-IEC 62040,GB/T4943, YD/T1095, TLCEN-IEC 61000, EN-IEC 62040,GB/T4943, YD/T1095, TLC
PHYSICAL
Case size(L*W*H)483.88*385483.88*505438*88*385438*88*505438*88*385Rack mount UPS: 438*88*385mm
Battery Pack: 438*88*690mm
Weight(kg)10.4/12.4(1PCS)5.8(1PCS)14.9/23.6(1PCS)7.0(1PCS)20.5/25.2(1PCS)7.4(1PCS)9.5kg(PF=1.0) exclusive battery pack10.25kg(PF=1.0) exclusive battery pack
Carton size(L*W*H)533*507*178533*617*178533*507*178533*617*178533*507*178Rack mount UPS case size: 533*507*178mm
Battery pack: 570*815*230mm
COMMUNICATION INTERFACE
INTERFACE1*USB, 1*RS232, 1*EPO1*USB, 1*RS232, 1*EPO

*Product specifications are subject to change without notice.
