Model #

PT-1KS

PT-1KL

PT-2KS

PT-2KL

PT-3KS

PT-3KL

Capacity

1KVA/1000W

2KVA/2000W

3KVA/3000W

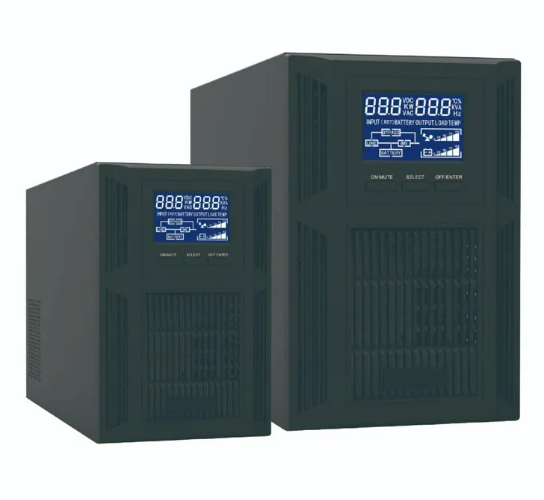

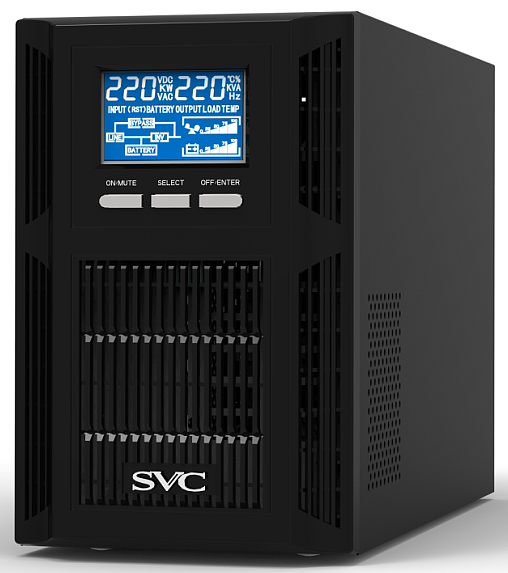

Front panel

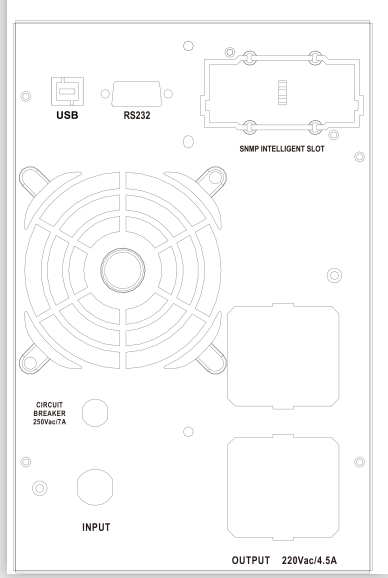

Rear panel

Display

LCD

INPUT

Input voltage range

110~300VAC,110~176VAC,276~300VAC(power limited)

Input frequency range

50/60Hz±6Hz,± 10Hz (setable)

OUTPUT

Output voltage range

208/220/230/240VAC

Output frequency

AC mode: same as AC ,Battery mode:50/60Hz±1%

Wave form

Pure Sinewave

Transfer time

0ms

BATTERY

QTY & capacity of battery

2pc*12V7Ah

--------------

4pc*12V7Ah

-------------

6pc*12V7Ah

----------

Charging period

4~6 hours recover to 90% capacity

PROTECTION & FUNCTION

PROTECTION

1. Battery low voltage protection
2. Overload protection
3. Short circuit protection

MANAGEMENT

RS232 & USB

Optional

PHYSICAL

Unit dimension (mm)

350*145*230

410*190*325

410*190*325

Master box dimension (mm)

Pcs in one master carton

Gross weight (1pc, kg)

Net weight (1pc, kg)

9.5

4.5

19

10

23.5

11
